Jaw crusherjaw breaker
Your current location: index
Jaw crusherjaw breaker
Release time:2023-12-6 Visits:97
Overview
  Jaw crusher is a common crushing equipment in mine crushing production. Its high compressive strength is 320MPa, which can meet the crushing processing of a variety of materials. It has the advantages of simple structure and reliable work.
  Applicable materials: river pebble, limestone, granite, basalt, quartzite, iron ore, dolomite, diabase, iron ore, gold ore, copper ore, etc.
The jaw crusher adopts high-strength manganese steel and one-time molding casting. While achieving the ideal crushing effect such as large crushing ratio, high output and uniform product size, it has obvious advantages such as wear resistance, compression resistance and long life.
  The crushing method of the jaw crusher is a curved extrusion type. The motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw The plate approaches the fixed jaw plate, and the material is subjected to multiple crushing pressures such as squeezing, rubbing, and grinding; when the moving jaw moves downward, the angle between the toggle plate and the moving jaw becomes smaller, and the moving jaw plate leaves the fixed jaw under the action of the pull rod and spring. The jaw plate, at this time, the crushed materials are discharged from the lower mouth of the crushing cavity. With the continuous rotation of the motor, the crushing mobile jaw is periodically crushed and discharged to realize mass production.
Product advantages:
  1. Special structure, high efficiency and environmental protection
The jaw crusher deepens the "V-shaped" deep cavity, high efficiency and energy saving, no dead corners in the crushing, uniform particle size of the finished product, and environmentally friendly equipment.
  2. The quality of the movable jaw is reliable and the parts are good
The jaw crusher has a more advanced movable jaw assembly, which makes it more durable. The movable jaw assembly is composed of high-quality cast steel parts and is driven by two large cast steel flywheels. In addition, the heavy eccentric shaft also uses forging blanks. For processing, all this makes the jaw crusher reliable.
  3. The rack can be dismantled and the failure rate is low
The frame can be disassembled and is not welded. It is sturdy and reliable, easy to transport and install, and has a lower failure rate.
  4. Advanced manufacturing technology

Jaw crushers are generally made of high wear-resistant tooth plates, which are durable and efficient, and have a long service life.

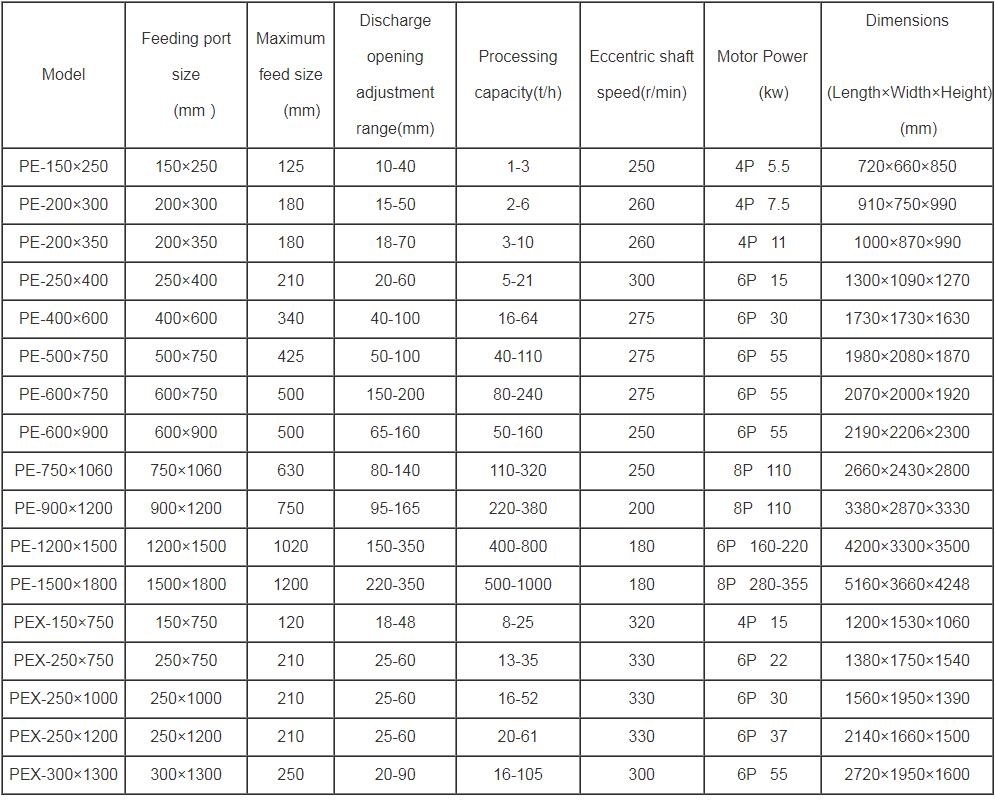

technical parameter
